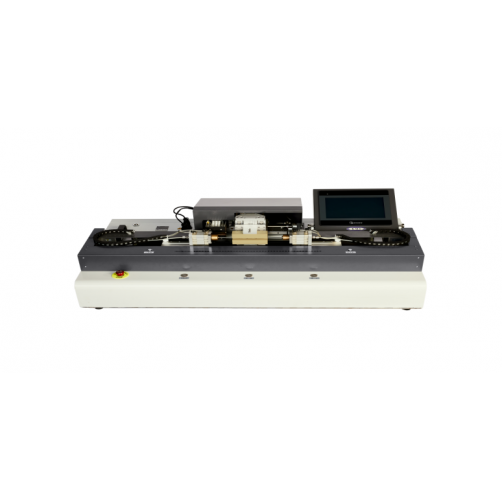

Balloon Forming Machine

Introduction:
This machine is an automated integrated equipment for the production of medical balloon, which uses resistance to heat the balloon cavity and high pressure nitrogen blowing and cooling to forming balloon.
It is suitable for the blowing of TPU vertebral balloon, and the output is two piecees in one operation.
Features:
1. Adopting the principle of double-side drawing forming, drawing speed, drawing force and drawing distance can be precisely controlled
2. Adopting resistance heating method, heating is even and the heating curve is stable, which can meet the requirement of high precision temperature in the process of balloon production.
3, temperature, pressure, distance and other parameters of the whole process monitoring, to adapt to the R & D process of the diversified requirements
4. The pipe material is simple, accurate and efficient
5. Optimize the structure design, reduce the material consumption
6. the Chinese Operation Interface, a variety of permissions to prevent the wrong call of the program
7. conventional can store 100 sets of process parameters, can be derived from the computer for expansion
8. balloon mold can be quickly replaced, suitable for different models of switching production
9.Desktop installation design, easy to operate

Parameters

Number: ZTQL-100

Voltage: 220V

Rated Current: 10A

Power: 1500W

Air Supply: 0.6-0.8Mpa

Length * Width * Height: 1560*610*570mm
